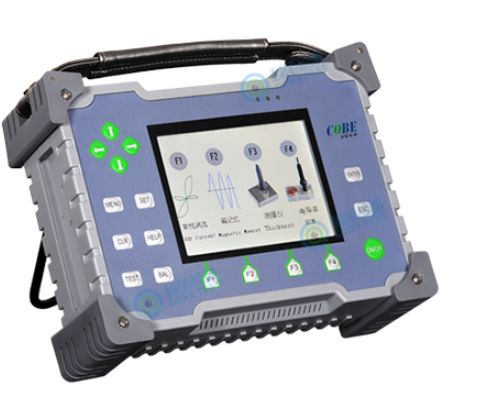

Portable Multi-function Eddy Current Tester

Portable Multi-function Eddy Current Tester

Features

Intelligent digital design

Strong dual core microprocessors with embedded operating system

High accuracy inspection :0.05mm

High efficiency testing, can cooperate to automated machinery test

Skilled manufacture and easy to carry

One-page menu, real-time on-screen instructions, can be realized fool-type operation



Main Technical Data

Frequency range

10Hz-10MHz

Independent frequency detection No.

2

Phase

0-359°,continuously adjustable, precision 1 °

Gain

0 dB ~ 99 dB, a wide gain adjustment 0.5dB

Display

colorful 5.7"TFT LCD

Digital Filtering

High-pass frequency (0Hz ~ 2000Hz), low-pass frequency (0Hz ~ 2000Hz)

Alarm mode

Multi-modenon-constant-amplitude phase / amplitude domain Alarmbuilt in alarm

Data storage

Testing Parameters , Testing Results, Query, Playback file

Built-in rechargeable of lithium battery

10hour

Operating System

LINUX

Operating Language

Chinese , English
